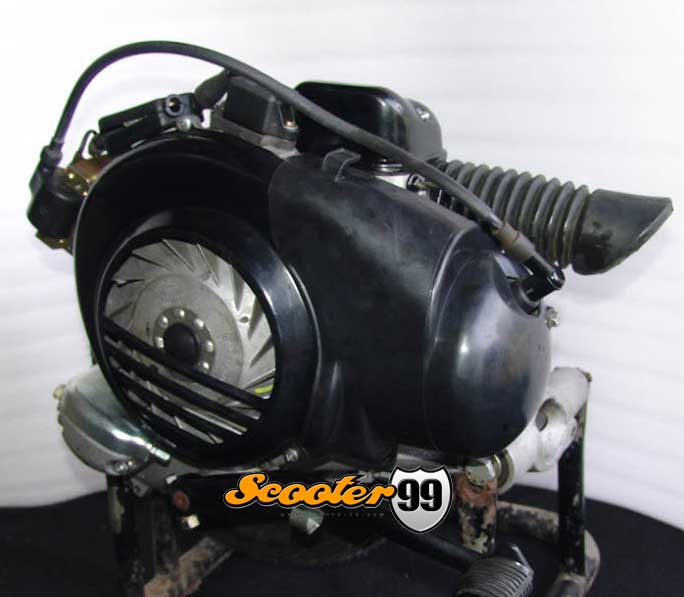

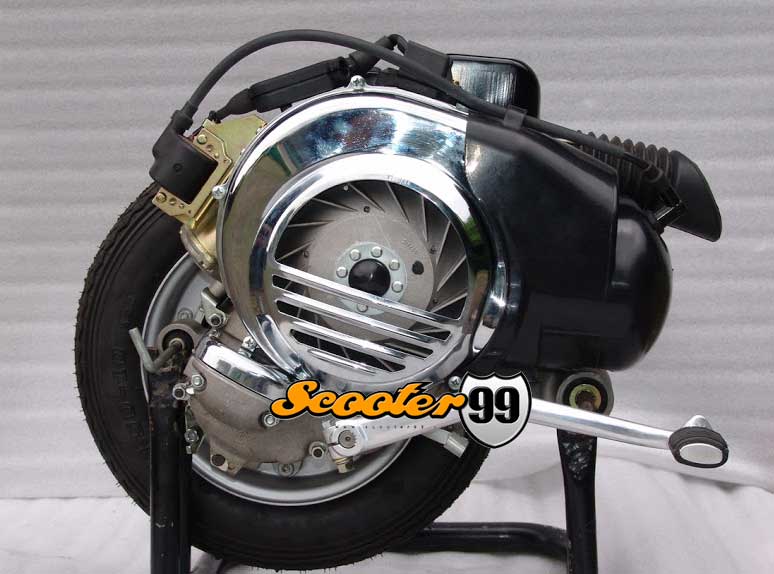

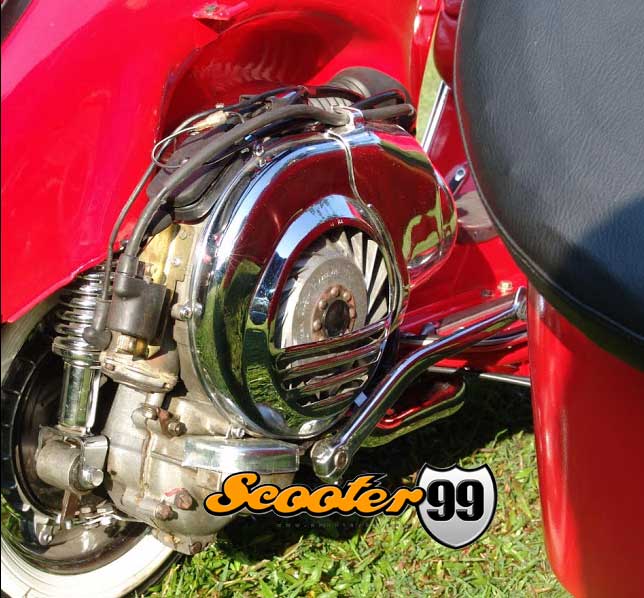

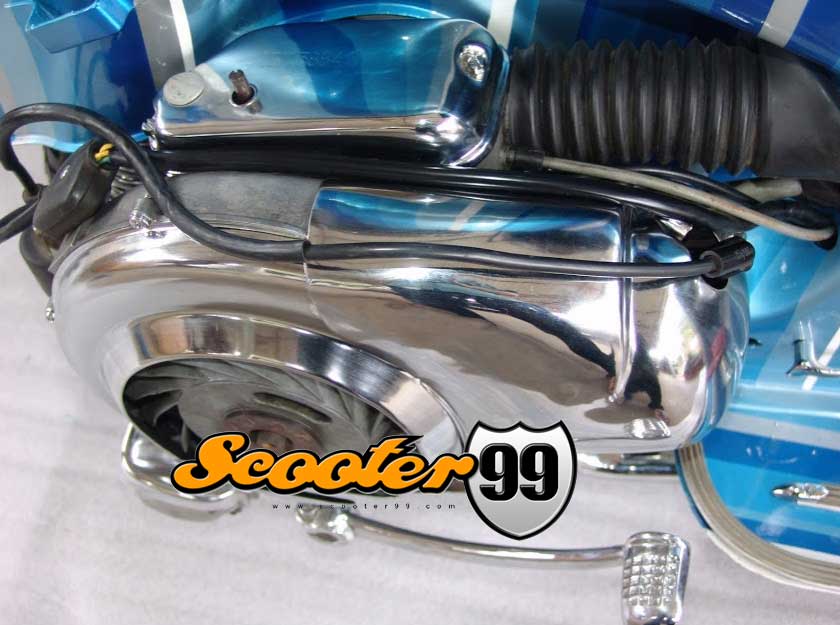

- Engine - Type Single cylinder, two-stroke
- Displacement - 151 cc
- Bore × Stroke - 2.32 in × 2.28 in (58 mm × 57 mm)
- Fuel - Unleaded
- Compression Ratio - 8:1
- Max. Torque - 12.9 lbs·ft (17.5 Nm) @ 6,500 rpm
- Induction - Rotating valve in crankcase
- Ignition - Electronic CDI
- Starter - Electric and kick starter
- Lubrication - mix two stroke oil
- Cooling - Forced air
- Gear Change - Manual, four-speed
- Clutch - Oil wet clutch
- Maximum Speed - 56 mph (90 kmph)
- Fuel Tank Capacity - 2.1 gallons (8 Liters)
- Power - CV 8.2 at 6,000 rpm
- Lubricant Tank Capacity - .4 gallon (1.5 liters)
- Rear Wheel Pressed steel rim 2.10 -10"
- Rear Tire Tube type 3.5 - 10"
- Rear Brake 5.9 in (150 mm) drum, mechanically commanded
- Rear Suspension - Engine works as oscillating arm, double effect damper
|
